Tree Stump Crusher

Category: Tree Stump Crusher

Date: 2021-02-19 02:20:56

Overview: 厨房垃圾处理设备是指安置在厨房的，将厨余垃圾进行初步处理的设备。常规处理设备为食···

Product Details | PRODUCT DETAILS

The drum wood chipper is mainly consist by 3 parts: crushing main body, discharge part and the electric control system.

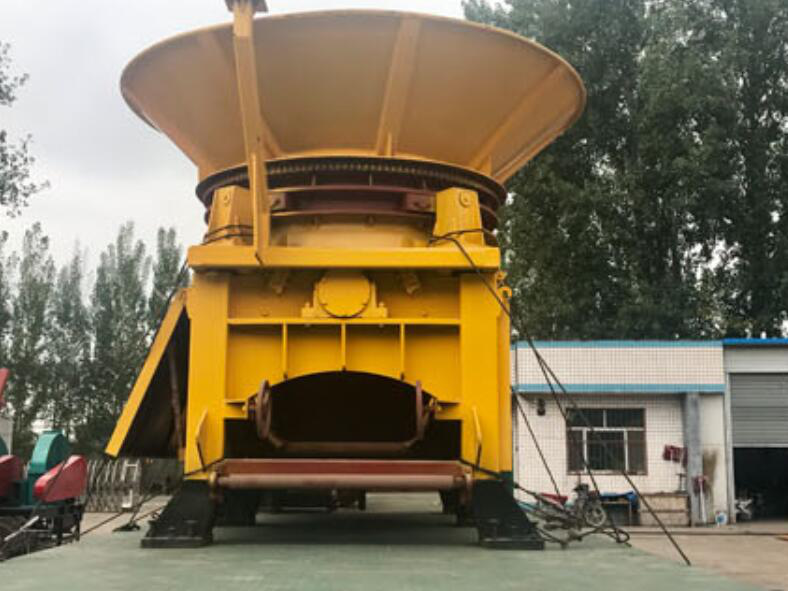

It is different with the wood chipper or biomass shredder(horizontal feeding), the tree stump crusher is vertical feeding, means the raw material will be feed from the top of the machine hopper.

This type of crusher is designed mainly for the tree root/stump or some unregular shape of the biomass raw material, the machine is working by rotory cutting, not horizontal cutting. The main application is also for biomass industry.

Model	XT3000	XT3300	XT3600
Rotor diameter	650mm	750mm	800mm
Inner blades installed	6pcs	6pcs	6pcs
Top feed-inlet size	3000mm	3300mm	3600mm
Bottom feed-inlet size	1600mm	2000mm	2300mm
Maximum tree root/stump size	1200mm diameter	1600mm diameter	2000mm diameter
Main power	160KW	250KW	315KW
Feed hopper power	5.5KW	7.5KW	7.5KW
Discharge power	5.5KW	7.5KW	7.5KW
Oiling power	3KW	3KW	4KW
Production capacity	15-20Ton/Hour	20-25Ton/Hour	25-30Ton/Hour
Finished chips or particle size	20-50mm	20-50mm	20-50mm
Machine weight	10.6Ton	15.2Ton	19.5Ton
Discharge conveyor	10m belt conveyor	10m belt conveyor	10m belt conveyor
Running speed	960r/min	960r/min	960r/min
Electric control system	Included	Included	Included
