Wood Chipper

Category: Wood Chipper

Date: 2021-02-19 02:21:00

Overview: 厨房垃圾处理设备是指安置在厨房的，将厨余垃圾进行初步处理的设备。常规处理设备为食···

Product Details | PRODUCT DETAILS

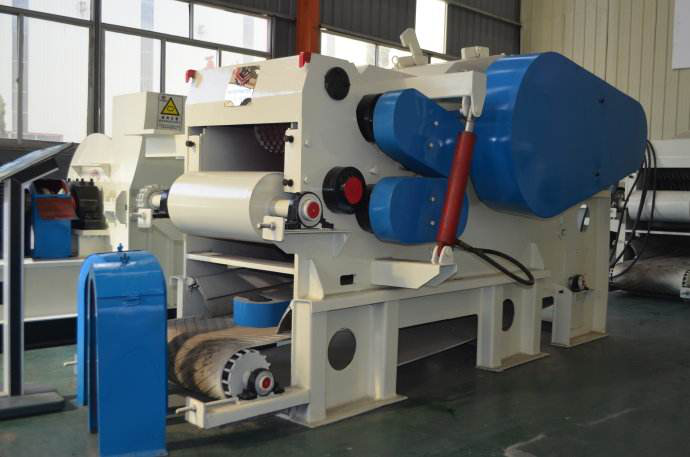

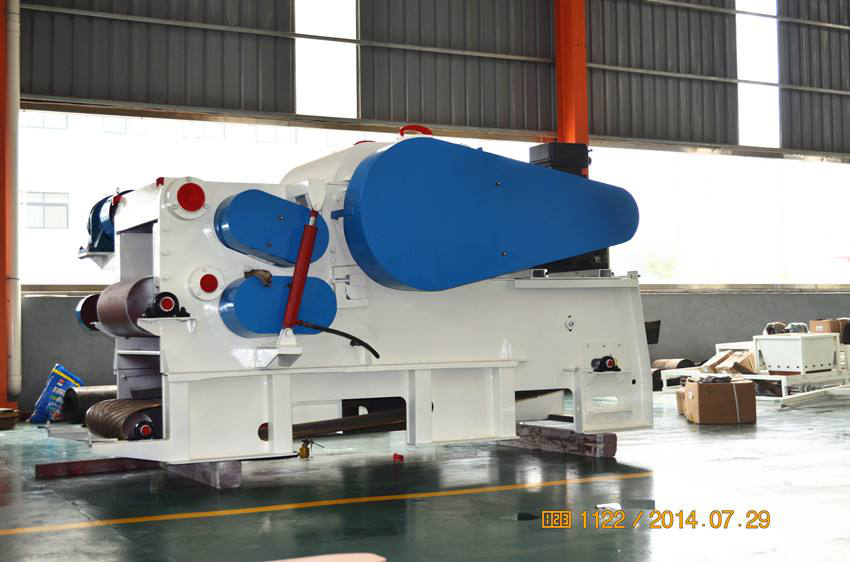

The drum wood chipper is mainly consist by 4 parts: feeding part, crushing main body, discharge part and the electric control system.

The wood chipper machine is main for crushing logs,tree branches, bamboos...etc into small particles with size 25mm-40mm, it is widely use in the biomass industry and paper making industry.

Our company will design and recommend the most suitable machine and model for customers based on their different raw material conditions and usage environments.

Model	BX215	BX216	BX218	BX2113
Rotor diameter	500mm	650mm	800mm	1000mm
Inner blades installed	2pcs	2pcs	2pcs	2pcs
Feed inlet size	400*180mm	550*250mm	700*300mm	1000*400mm
Maximum log diameter	175mm	245mm	295mm	395mm
Main power	45KW motor or Diesel	55KW motor or Diesel	110KW motor or Diesel	220KW motor or Diesel
Hydraulic power	2.2KW	2.2KW	3KW	4KW
Feeding motor power	5.5KW+4KW	7.5KW+5.5KW	7.5KW+7.5KW	11KW+7.5KW
Discharge motor power	3KW+4KW	4KW+4KW	5.5KW+4KW	7.5KW+4.5KW
Production capacity	3-4Ton/Hour	4-5Ton/Hour	9-10Ton/Hour	18-20Ton/Hour
Finished chips size	25-35mm	25-35mm	30-40mm	30-40mm
Feeding conveyor	6m belt conveyor	6m belt conveyor	6m belt conveyor	6m belt conveyor
Discharge conveyor	8m belt conveyor	10m belt conveyor	10m belt conveyor	10m belt conveyor
Electric control cabinet	Included	Included	Included	Included
Machine main body size	180018001150mm	200020001250mm	240021801500mm	368024502050mm
Machine weight	3.2Ton	4.6Ton	7.2Ton	12.5Ton
